Panasonic Ac Servo Motor MHMD082G1U with Driving Control Price In Bangladesh

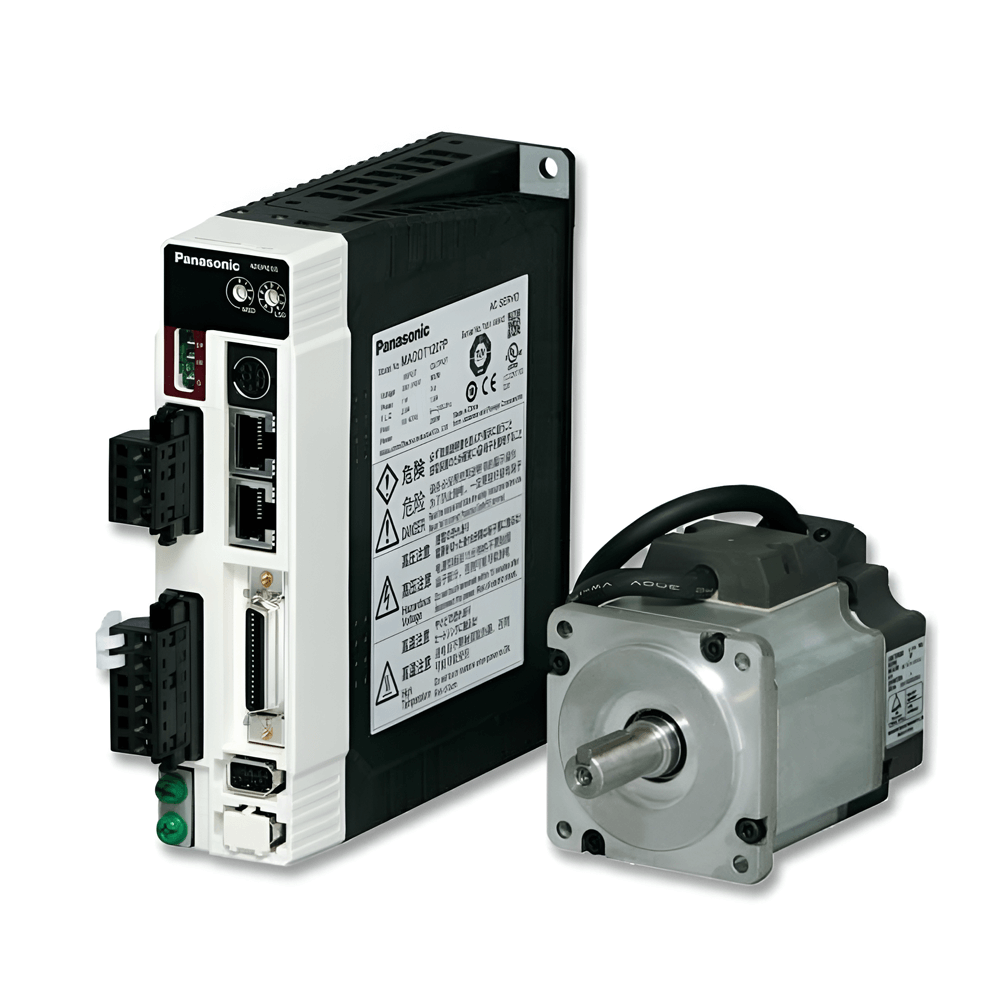

Panasonic AC Servo Motor MHMD082G1U with Driving Control

Discover the Panasonic AC Servo Motor MHMD082G1U, designed to deliver exceptional performance and reliability for your industrial applications. As we continuously improve our solutions and services, we are committed to providing high-quality products that meet your needs.

Quality Assurance

We stand behind our products with confidence. If you are not completely satisfied with the quality of the Panasonic Servo Motor, you can return it within 7 days, provided it is in its original condition.

Key Features

• Part Number: MHMD082G1U
• Family Name: MINAS A5
• Series: MHMD Series
• Type: High Inertia
• Protection Class: IP65 (Excludes rotating portion of the output shaft and lead wire end)

Specifications

• Power Supply Capacity: 1.3 kVA
• Voltage Specifications: 200 V
• Rated Output: 750 W
• Rated Current: 4.0 A (rms)
• Rated Torque: 2.4 N·m
• Momentary Max. Peak Torque: 7.1 N·m
• Rated Rotational Speed: 3000 r/min
• Max. Speed: 4500 r/min
• Moment of Inertia of Rotor: 1.51 x 10^-4 kg·m²
• Recommended Inertia Ratio: 20 times or less
• Rotary Encoder: 20-bit Incremental System with a resolution of 1048576

Permissible Loads

• During Assembly:
  • Radial Load P-Direction: 686 N
  • Thrust Load A-Direction: 294 N
  • Thrust Load B-Direction: 392 N
• During Operation:
  • Radial Load P-Direction: 392 N
  • Thrust Load A & B-Direction: 147 N

Commitment to Innovation

In the face of evolving challenges and opportunities within the industry, our team prioritizes quality, innovation, and mutual benefit. We aim to provide our clients with effective solutions, competitive pricing, and outstanding service, fostering a brighter future together.

Order Your Panasonic AC Servo Motor Today!

Enhance your operations with the Panasonic MHMD082G1U AC Servo Motor. Contact us to learn more about our products and how we can meet your industrial needs!
